Small Covert GSM Bus GPS Tracking System Remote Cut Off Engine
Performance Parameters:
| Content | Specs. |
| Product Name | GPS Tracker Device |
| GSM Chip | MTK CHIP |
| GPS Chip | UBlox Chip |
| Application | GPS Tracking System |
| Dim. | 95*45*13.8mm |
| Weight | 56g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| Application | Vehicle car motorcycle |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5-30m |
| voltage input | 9.5－39.9VDC |
| Working currency | 20mA/12VDC |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Functions1 | SOS Alarm and voice monitor |
| Functions2 | Remote cut off engine |
| Humidity | 20%--80% RH |
Functional features:
- GPS Tracker Device
- GSM 850 / 900 / 1800 / 1900 MHZ
- Blind-area replay
- History Track
- Built-in battery
- Anti-theft Real time tracking
- ACC ignition detection
- Built-in vibration sensor ,burglar alarm
- Voice monitor
- Vibration alarm
- Mobile Phone App for iphone
- Power Off Alarm (Optional)
- Remote cut off engine
- SOS Alarm
Installation Diagram:
Red Led-( Power status indicator)
| Led Status | Meaning |
| Quick Flashing | Working normally (working by backup car battery) |
| Slow Flashing | Working normally (working under battery of device) the device will change to work by own battery while backup battery had been cut down. And it will alarm. |
| Continuously in dark or bright status: | Device Error |
Blue Led Light-( GSM status indicator)
| Led Status | Meaning |
| Quick Flashing | Working normally, Uploading GPRS data to platform server. |
| Slow Flashing | Working normally, Receive GSM signal normally |
| Continuously in bright status | No GSM signal |
| Continuously in Dark status | Device Error |
Green Led Light – (GPS status Indicator)
| Led Status | Meaning |
| Flashing | Working normally. GPS located. |
| Continuously in bright state | Searching GPS signal |
| Continuously in dark state | Device Error |
Applications :
4s shop , car company , truck company , motorcycle company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
- GPS Host
- Power cable
- User manual
2. Optional accessories
1. Relay
2. SOS Button
3. Microphone
Product Tags:
|
|

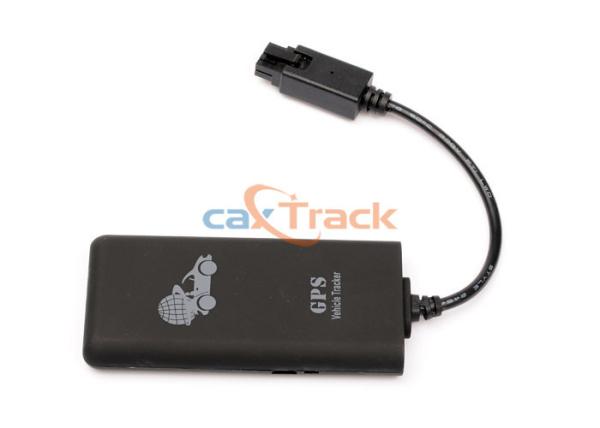

Small Covert GSM Bus GPS Tracking System Remote Cut Off Engine Images
|
