Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker

Product Categories
SHENZHEN YITUOWULIAN SYSTEM CO.,LTD
Contact Now

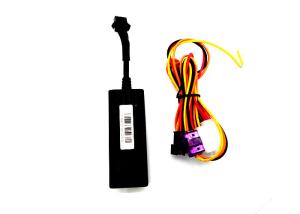

Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker

  • 1
  • 2
  • 3

Brand Name : Cartracker

Model Number : C003-01-4G

Certification : CE ISO9000

Place of Origin : Shenzhen China

MOQ : 10pcs

Price : negotiation

Payment Terms : T/T or western Union or paypal

Supply Ability : 10,000pcs per month

Delivery Time : 1-10 working days after received your payment

Packaging Details : Packed in carton firstly

Use : Automotive

Customization1 : Logo

Customization2 : Shell Color

Network : FDD 800/850/900/1800/2100/2600MHz

Placement : Instument Panel

Function : Remotely Monitoring

Warranty : 24 month

Model No : C003-01-4G

Certificate : ISO CE

Contact Now

Protocol GT06 Vehicle GPS Tracker GPRS SMS Online Tracking Moving Alarm 4G GPS Tracker

Features

GSM850/900/1800/1900mhz,
WCDMA850/900/1900/2100 Mhz
FDD-LTE 800/850/900/1800/2100/2600MHz
Wide operating input voltage range: 9-80VDC;
GPS / LBS real-time positioning
support the computer to track the car
mobile search
vehicles
wechat search vehicles
Support SMS text query location information
Built-in vibration sensor
Able to set a specific number for SOS alarm and burglar alarm
SOS switch button for emergency call for help;

GSM: 850/900/1800/1900 Quad band
GPRS: Class12, TCP/IP
Working Voltage 9-100V DC
Working current: ≈22mA (12vDC)
Working current: ≈12mA (24vDC)
GPS locating time: Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
GPS Precision: 10m(2D RM)
Working temperature: *-20℃～+70℃
Working humidity: 20%～80%RH
Measurement: 90(L)×40(W)×15(H)mm

Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker
Protocol GT06 Vehicle GPS Tracker GPRS SMS Online Tracking Moving Alarm 4G GPS Tracker

Functions:

GPS functions:
protocol: GT06 1)support ACC ignition checking
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6) platform /APP supported


Product Specification

Frequency North America EC25-A
EC25-V:LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13
Nerworks 4G/3G/2G
Battery 200mah
Operating Voltage 9-100v
Location time Hot start≈2s(Open sky)
Location accuracy 5-10M
Operating temperature -20℃～+70℃
Dimension 90*40*15mm
Weight 0.05kg

Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker

Protocol GT06 Vehicle GPS Tracker GPRS SMS Online Tracking Moving Alarm 4G GPS Tracker
Produce Description

GSM GPRS
Geo-sensor Input power
ACC Ignition checking
Built-in battery Cutt off power/fuel
Real time tracking Over speed alarm
Relay supported Platform /APP supported



Preparation for the installation

1 . Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
2 . Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
3 . SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
4 . Put back the front cover and screw it up.
5 . Connect the device to the 9-100Vpower supply.(the red LED constant glow)
6 . Install the device in the hidden place of the car；


Warranty 2years 4G GPS Tracking Device Remote Monitor Voice Smart GPS Tracker

Protocol GT06 Vehicle GPS Tracker GPRS SMS Online Tracking Moving Alarm 4G GPS Tracker

Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals.


Device wiring requirements

1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.

2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the plug of power supply to the device
